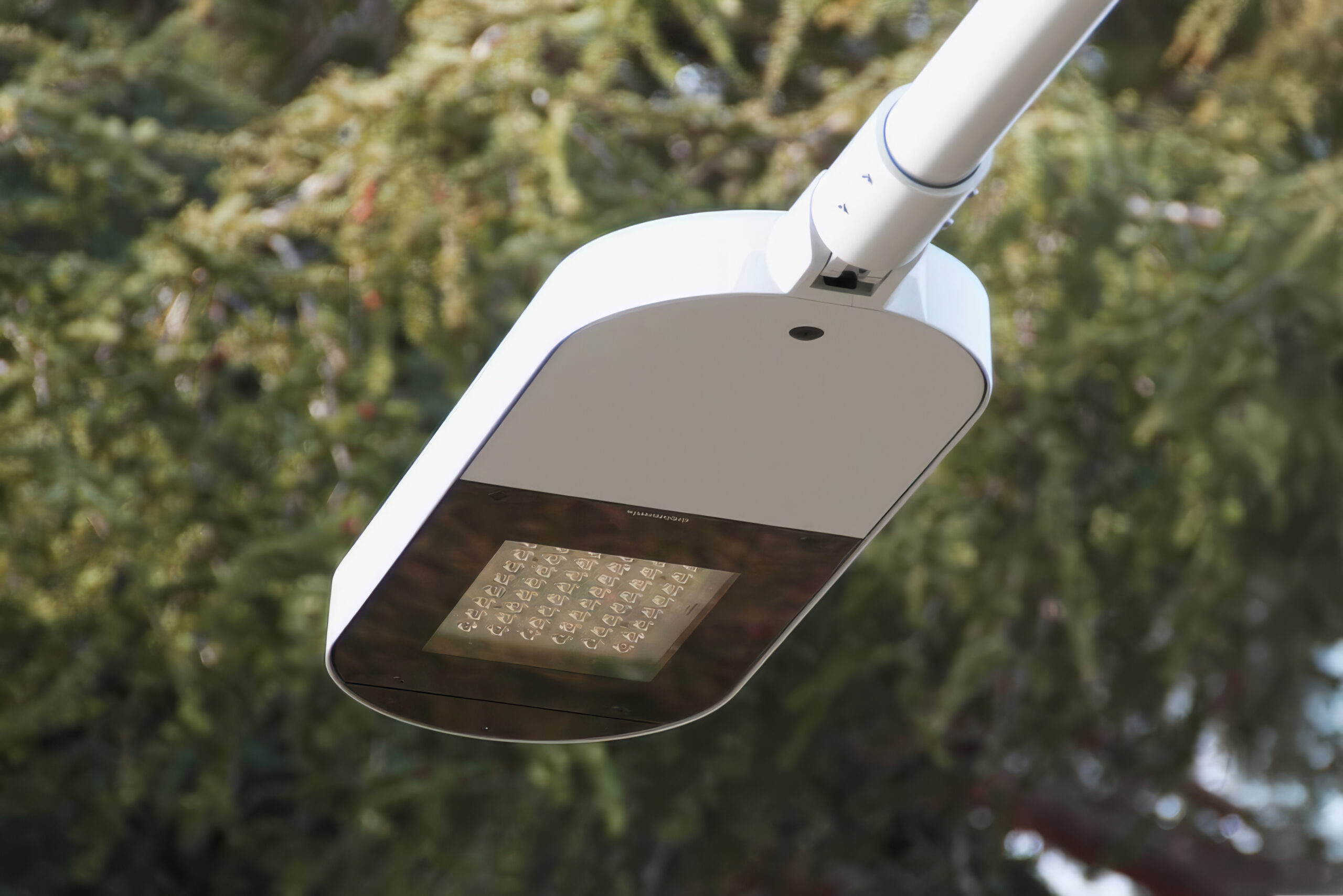

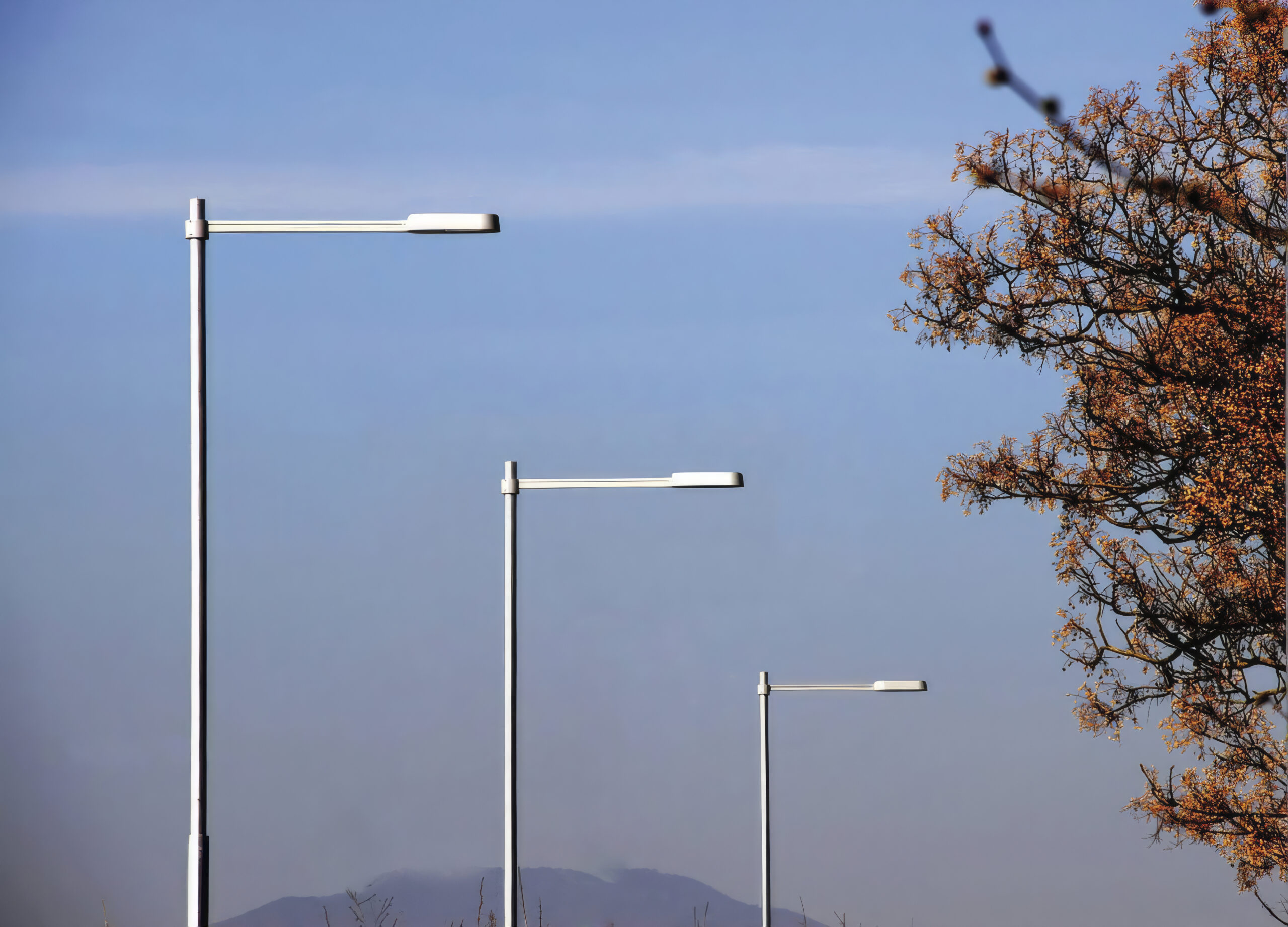

Luminaire with oval geometry, designed to illuminate wide urban roads. Candela is a flexible illumination system, with one or two luminaires at the same or different heights, and different lengths of arm.
Products /
Luminaire with oval geometry, designed to illuminate wide urban roads. Candela is a flexible illumination system, with one or two luminaires at the same or different heights, and different lengths of arm.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary

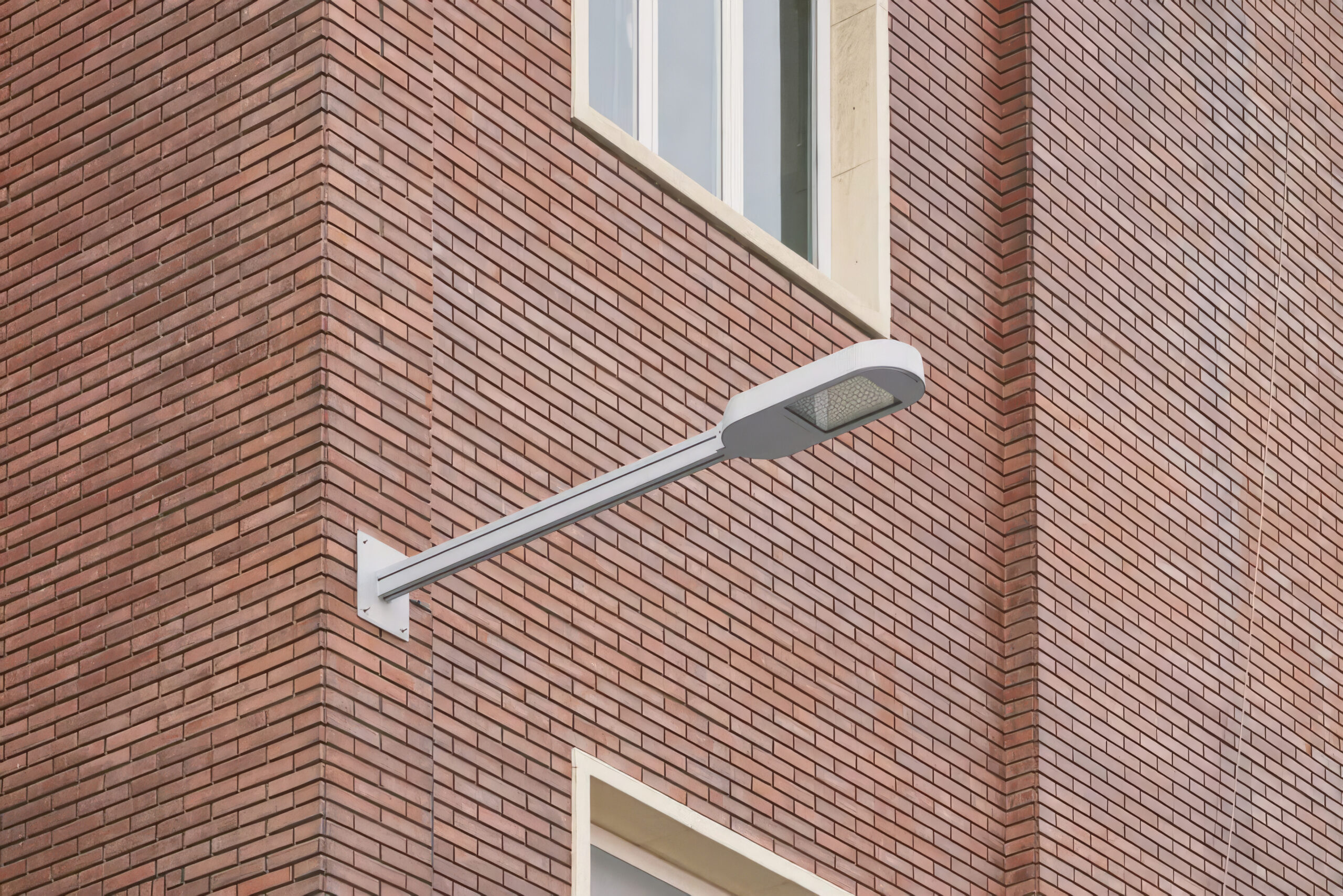

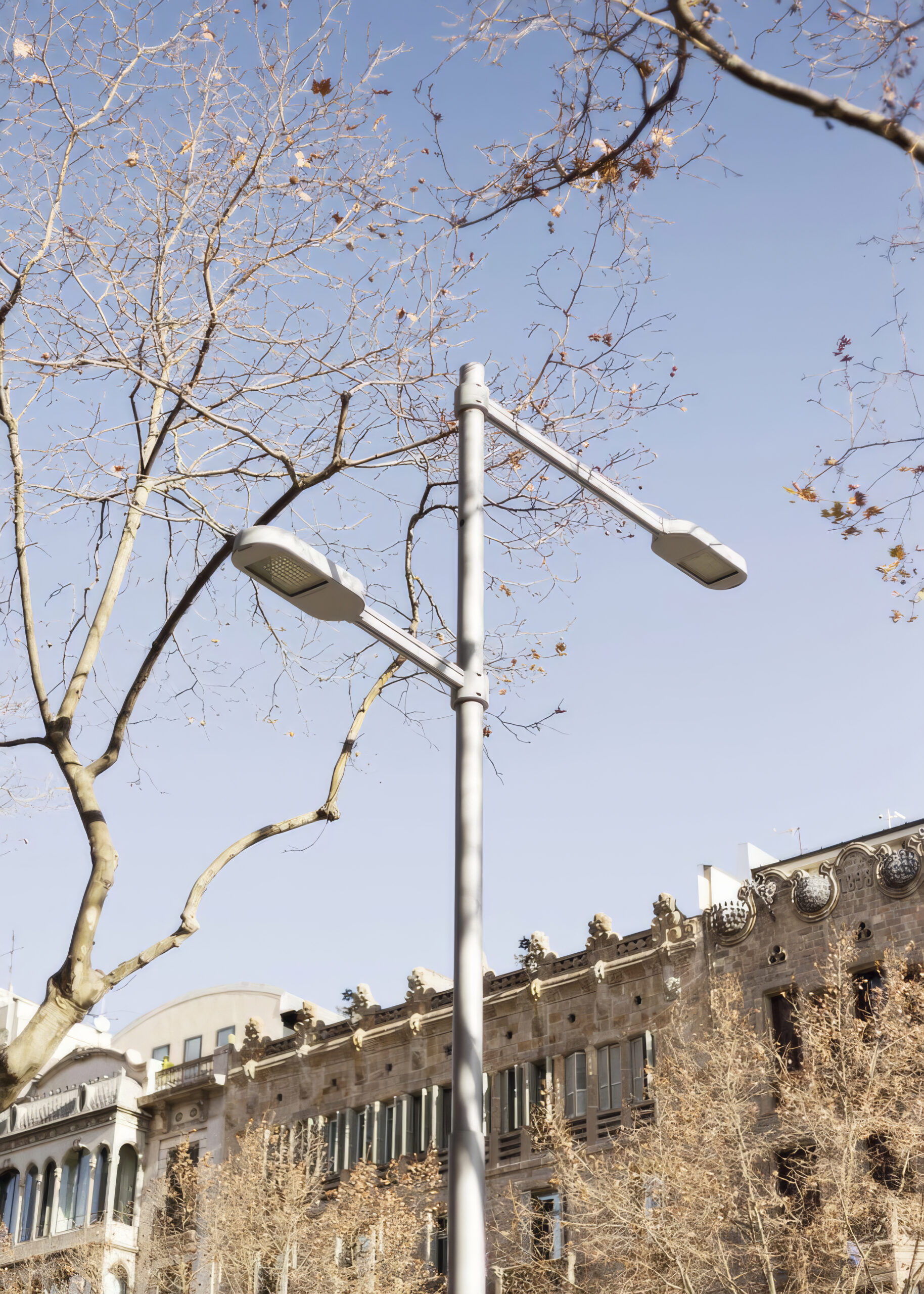

Single or double luminaire configuration at the same or different heights
Choice of short, medium or long column arms
High-efficiency optical unit with multiple wattage options
Wide choice of light distributions: Type II, III, IV, II+III
Remote dimming via 1-10V/0-10V or DALI protocols
Anodised injection-moulded aluminium EN-AC-47100 luminaire body with powder-coated finish.
Tempered optical glass diffuser.
A2 stainless steel hardware and metal cable gland.
Hot-dip galvanised, powder-coated steel arm; column made from hot-dip galvanised cylindrical S-275 JR steel tube with powder-coated finish; zinc-plated steel fixings.
24 LEDs: 27W, 38W, 53W
48 LEDs: 51W, 73W, 102W
72 LEDs: 78W, 111W, 156W
96 LEDs: 100W, 145W, 202W
Luminaire weight: approx. 11.5kg
Service life: TM21 L90 (10k) > 100,000 h
Short, medium or long column arm lengths
Colour temperatures: 2200K-4000K, plus PC Amber
Constant Luminous Management (CLM), temperature control and surge protection
Life Cycle Assessment (LCA) environmental impact report available
Complies with Australian and New Zealand requirements under the Regulatory Compliance Mark (RCM), including electrical safety and EMC regulations. Certified according to applicable AS/NZS standards through recognised independent laboratories. RoHS compliant for electrical and electronic components. IP66 rated and IK08 impact rated. Class I electrical protection. Luminaires comply with AS/NZS 60598 and AS/NZS CISPR 15 requirements for safety and electromagnetic compatibility.
